Export XML File (Tables Menu)

DBExplorer can export data to a delimited or CSV file. Upon selection of this function, a form is displayed and the export specifications may be defined.

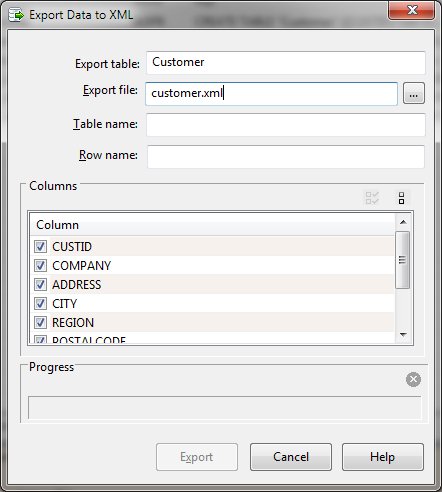

Export Dialog Items

Export table

The name of the currently selected table that is to be exported.

Export file

The name of the destination file. A browse button is provided to allow file selection.

Table name

The name of the table record in the XML file.

Row name

The name of the row record in the XML file.

Columns

The name of the columns to be exported. Columns may be excluded by clearing the check box on the appropriate line.

Progress

The progress section shows the record count and a progress bar. A stop button allows the export to be aborted.

The exported data will be in the following format where "TableName" is the specified table name and "RowName" is the specified row name.

<?xml version="1.0" encoding="UTF-8"?>

<TableName>

  <RowName>

    <CUSTID>2</CUSTID>

    <COMPANY>Company2</COMPANY>

    <ADDRESS>Address2</ADDRESS>

    <CITY>City2</CITY>

    <REGION>Region2</REGION>

    <POSTALCODE>PostalCode2</POSTALCODE>

    <COUNTRY>Country2</COUNTRY>

    <PHONE>Phone2</PHONE>

  </RowName>

  <RowName>

    <CUSTID>3</CUSTID>

    <COMPANY>Company3</COMPANY>

    <ADDRESS>7577188</ADDRESS>

    <CITY>USA</CITY>

    <REGION>123-567-9012</REGION>

  </RowName>

...

</TableName>

When exporting from the Data or SQL tab, only the selected rows are output. Use Select All before exporting to choose all rows of data shown. The Export Data function when other DBExplorer tabs are selected exports all rows in the selected table.
