DataTable Row Editor

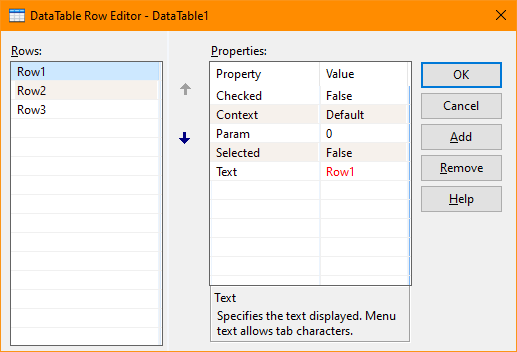

The DataTable Row Editor allows maintenance of rows within a datatable. The editor consists of two lists and five buttons.

The edit window may be resized and a splitter is available to allow resizing the rows list.

Rows

The list on the left side of the editor shows any defined rows. The list on right shows the selected row's properties. The selected row is highlighted and may be changed by clicking the desired row.

OK

The OK button signals that modifications to the datatable rows are complete and the datatable is updated. The editor is then closed.

Cancel

The Cancel button indicates that any modifications to the datatable should be discarded and the editor closed.

Add

The Add button inserts a new row into the datatable. The column name defaults to Row{nn} where {nn} is a sequential value.

Remove

The Remove button deletes the selected row from the datatable.

Help

The Help button displays this page in a new window.

Up and Down

The Up and Down Arrow buttons located between the two lists of the editor allows changing the position of the selected row.
